Model：
|
NO |
Product Properties |
| |
|
1 |
Rated working pressure |
PN |
1.0-1.6Mpa |
|
2 |
Test pressure |
Shell |
1.5-2.4Mpa |
|
Seal |
1.1-1.76Mpa | ||
|
3 |
Operating temperature |
T |
0-100℃ |
|
4 |
Applicable medium |
Freshwater, seawater, air, weak acid-base, etc. | |
|
NO |
name |
material quality |
NO |
name |
material quality |
|
1 |
O-ring seal |
NBR |
7 |
Seat rubber |
EPDM、NBR、PTFE |
|
2 |
Retreat spring |
50#Manganese steel |
8 |
Valve |
QT450 nickel plating, QT450 nylon, aluminum bronze, 304, 316, 316L, 2507, 1.4469, 1.4529 |
|
3 |
Retreat Ring |
45#Zinc plating |
9 |
Retreat |
UPVC、45# |
|
4 |
Round gasket |
45#Zinc plating |
10 |
Lower shaft |
304, 316, 416 stainless steel, 45 # carbon steel |
|
5 |
Lubricating shaft sleeve |
teflon |
11 |
valve body |
HT200, QT450, stainless steel, cast steel |
|
6 |
Upper shaft |
304, 316, 416 stainless steel, 45 # carbon steel |
|

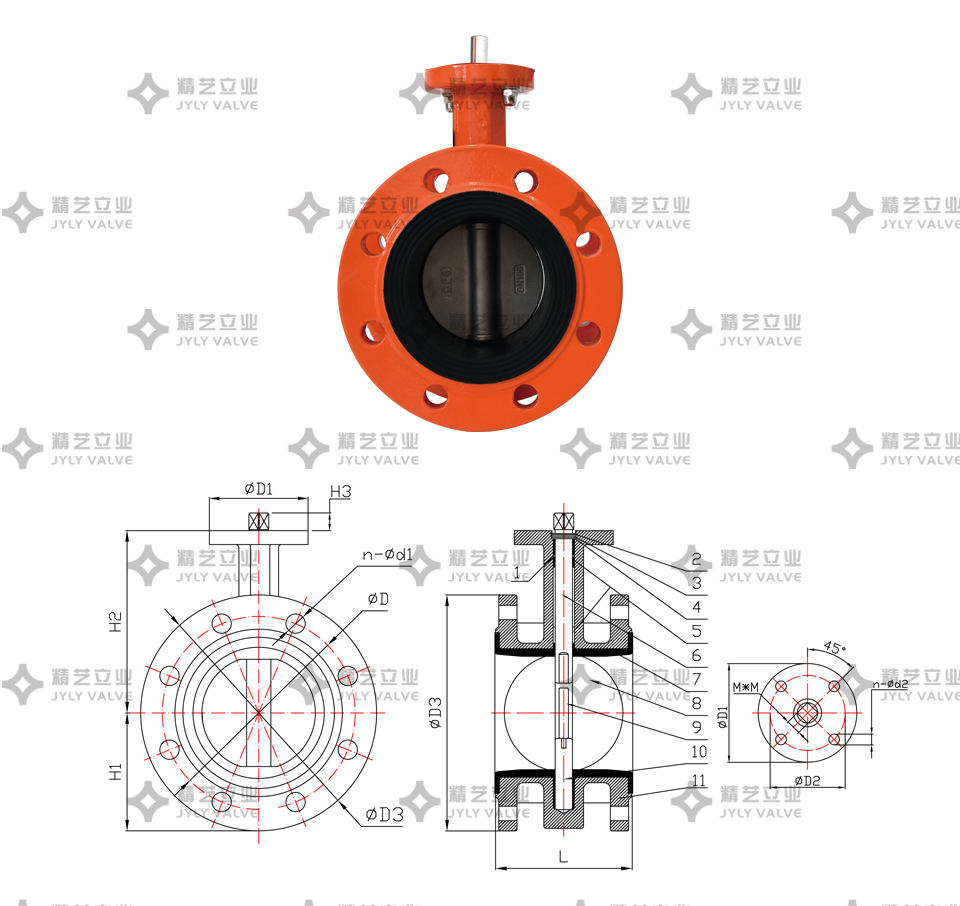

DN |
ΦD |
ΦD1 |
ΦD2 |
ΦD3 |
n-Φd1 |
n-Φd2 |
H1 |
H2 |
H3 |
M*M |
L |
|
DN40 |
110.00 |
72 |
50 |
150 |
4-Φ18 |
4-∮7 |
76 |
136 |
11 |
11*11 |
110 |
|
DN50 |
125.00 |
72 |
50 |
165 |
4-Φ18 |
4-∮7 |
81 |
142 |
11 |
11*11 |
110 |
|
DN65 |
145.00 |
72 |
50 |
185 |
4-Φ18 |
4-∮7 |
96 |
146 |
11 |
11*11 |
114 |
|
DN80 |
160.00 |
72 |
50 |
200 |
4-Φ18 |
4-∮7 |
98 |
152 |
11 |
11*11 |
116 |
|
160.00 |
200 |
8-Φ18 | |||||||||
|
DN100 |
180.00 |
92 |
70 |
220 |
8-Φ18 |
4-∮10 |
111 |
175 |
14 |
14*14 |
129 |
|
DN125 |
210.00 |
92 |
70 |
250 |
8-Φ18 |
4-∮10 |
128 |
181 |
17 |
17*17 |
142 |
|
DN150 |
240.00 |
92 |
70 |
285 |
8-Φ22 |
4-∮10 |
143 |
200 |
17 |
17*17 |
142 |
|
DN200 |
295.00 |
125 |
102 |
340 |
8-Φ22 |
4-∮12 |
172 |
233 |
22 |
22*22 |
154 |
|
295.00 |
340 |
12-Φ22 | |||||||||
|
DN250 |
350.00 |
125 |
102 |
395 |
12-Φ22 |
4-∮12 |
199 |
265 |
22 |
22*22 |
167 |
|
355.00 |
405 |
12-Φ26 | |||||||||
|
DN300 |
400.00 |
150 |
125 |
445 |
12-Φ22 |
4-∮14 |
231 |
298 |
27 |
27*27 |
180 |
|
410.00 |
460 |
12-Φ26 | |||||||||
|
DN350 |
460.00 |
150 |
125 |
505 |
16-Φ22 |
4-∮14 |
253 |
326 |
27 |
27*27 |
192 |
|
470.00 |
520 |
16-Φ26 | |||||||||
|
DN400 |
515.00 |
175 |
140 |
565 |
16-Φ26 |
4-∮18 |
266 |
367 |
40 |
36*36 |
218 |
|
525.00 |
580 |
16-Φ30 | |||||||||
|
DN450 |
565.00 |
175 |
140 |
615 |
20-Φ26 |
4-∮18 |
299 |
408 |
40 |
36*36 |
224 |
|
585.00 |
640 |
20-Φ30 | |||||||||
|
DN500 |
620.00 |
210 |
165 |
670 |
20-Φ26 |
4-∮22 |
327 |
434 |
50 |
46*46 |
231 |
|
650.00 |
715 |
20-Φ33 | |||||||||
|
DN600 |
725.00 |
210 |
165 |
780 |
20-Φ30 |
4-∮22 |
385 |
506 |
50 |
46*46 |
270 |
|
770.00 |
840 |
20-Φ36 | |||||||||
|
DN700 |
840.00 |
300 |
254 |
895 |
24-Φ30 |
8-∮18 |
456 |
556 |
70 |
64*64 |
293 |
|
840.00 |
910 |
24-Φ36 | |||||||||
|
DN800 |
950.00 |
300 |
254 |
1015 |
24-Φ33 |
8-∮18 |
487 |
604 |
70 |
64*64 |
318 |
|
950.00 |
1025 |
24-Φ39 | |||||||||
|
DN900 |
1050.00 |
300 |
254 |
1115 |
28-Φ33 |
8-∮18 |
555 |
688 |
80 |
74*74 |
328 |
|
1050.00 |
1125 |
28-Φ39 | |||||||||
|
DN1000 |
1160.00 |
300 |
254 |
1230 |
28-Φ36 |
8-∮18 |
621 |
738 |
80 |
74*74 |
413 |
|
1170.00 |
1255 |
28-Φ42 | |||||||||
|
DN1200 |
1380.00 |
350 |
298 |
1455 |
32-Φ39 |
8-∮22 |
775 |
925 |
90 |
84*84 |
473 |
|
1390.00 |
1485 |
32-Φ48 |
