Model：
|
NO |
Product attributes |
| |
|
1 |
Rated working pressure |
PN |
1.0-1.6Mpa |
|
2 |
Test pressure |
|
1.5-2.4Mpa |
|
Seal |
1.1-1.76Mpa | ||
|
3 |
working temperature |
T |
0-100℃ |
|
4 |
Applicable media |
Freshwater, sea water, air, weak acids and bases, etc. | |
|

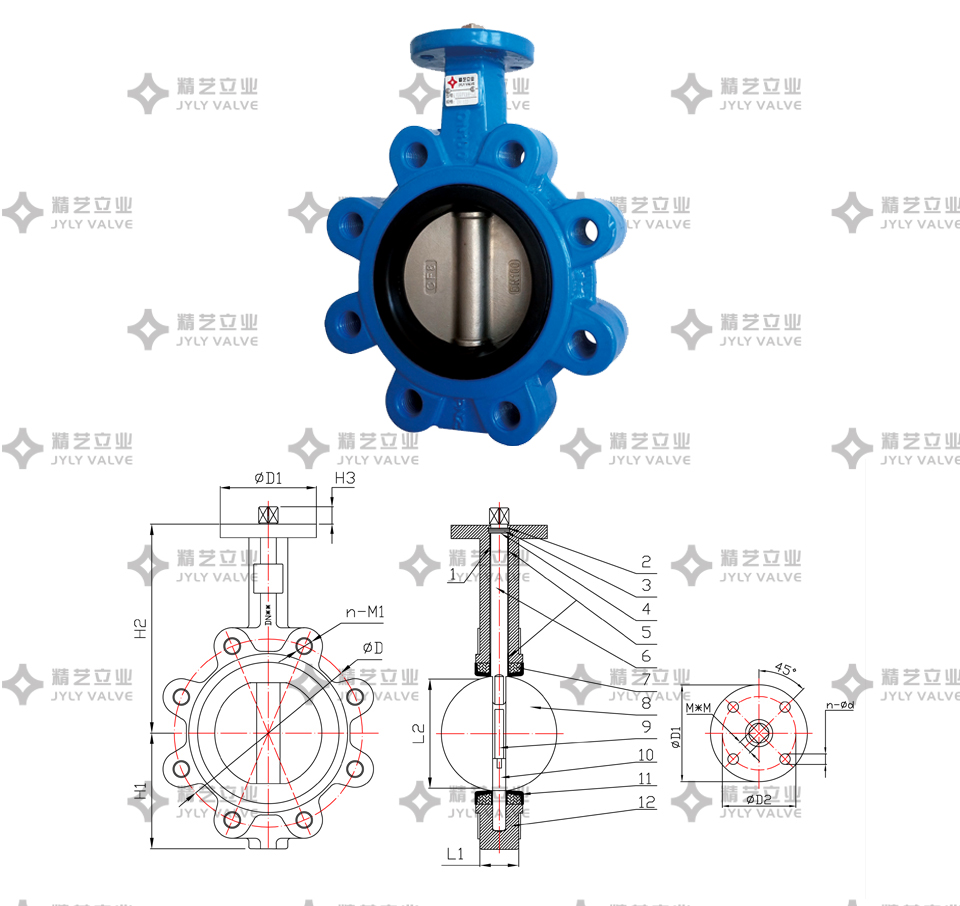

NO |
name |
|
NO |
name |
|
|
1 |
O-ring seal |
NBR |
7 |
Seat back |
phenolic resin |
|
2 |
Retreat spring |
50#Manganese steel |
8 |
Valve |
QT450 nickel plating, QT450 nylon, aluminum bronze, 304, 316, 316L, 2507, 1.4469, 1.4529 |
|
3 |
Retreat Ring |
45#Zinc plating |
9 |
Retreat |
UPVC、45# |
|
4 |
Round gasket |
45#Zinc plating |
10 |
Lower shaft |
304、316、416 stainless steel, 45 # carbon steel |
|
5 |
Lubricating shaft sleeve |
teflon |
11 |
Seat rubber |
EPDM、NBR、FTFE, silicone, fluoride |
|
6 |
Upper shaft |
304、316、 416stainless steel, 45 # carbon steel |
12 |
valve body |
HT200, QT450, stainless steel, cast steel |
|
DN |
ΦD |
ΦD1 |
ΦD2 |
n-M1 |
n-Φd |
H1 |
H2 |
H3 |
M*M |
L1 |
L2 |
|
DN40 |
110.00 |
72 |
50 |
4-M16 |
4-∮7 |
71 |
120 |
11 |
11*11 |
33.5 |
30 |
|
DN50 |
125.00 |
72 |
50 |
4-M16 |
4-∮7 |
70 |
130 |
11 |
11*11 |
42 |
32 |
|
DN65 |
145.00 |
72 |
50 |
4-M16 |
4-∮7 |
80&n, bsp; |
143 |
11 |
11*11 |
45 |
47 |
|
DN80 |
160.00 |
72 |
50 |
4-M16 |
4-∮7 |
94 |
155 |
11 |
11*11 |
45 |
65 |
|
160.00 |
8-M16 | ||||||||||
|
DN100 |
180.00 |
92 |
70 |
8-M16 |
4-∮10 |
108 |
170 |
14 |
14*14 |
52.1 |
91 |
|
DN125 |
210.00 |
92 |
70 |
8-M16 |
4-∮10 |
122 |
190 |
17 |
17*17 |
55 |
112 |
|
DN150 |
240.00 |
92 |
70 |
8-M20 |
4-∮10 |
134 |
210 |
17 |
17*17 |
56 |
146 |
|
DN200 |
295.00 |
125 |
102 |
8-M20 |
4-∮12 |
167 |
243 |
22 |
22*22 |
61 |
194 |
|
295.00 |
12-M20 | ||||||||||
|
DN250 |
350.00 |
125 |
102 |
12-M20 |
4-∮12 |
203 |
282 |
22 |
22*22 |
66 |
242 |
|
355.00 |
12-M24 | ||||||||||
|
DN300 |
400.00 |
150 |
125 |
12-M20 |
4-∮14 |
241 |
310 |
27 |
27*27 |
77 |
292 |
|
410.00 |
12-M24 | ||||||||||
|
DN350 |
460.00 |
150 |
125 |
16-M20 |
4-∮14 |
267 |
353 |
27 |
27*27 |
77 |
325 |
|
470.00 |
16-M24 | ||||||||||
|
DN400 |
515.00 |
175 |
140 |
16-M24 |
4-∮18 |
310 |
380 |
40 |
36*36 |
87 |
380 |
|
525.00 |
16-M27 | ||||||||||
|
DN450 |
565.00 |
175 |
140 |
20-M24 |
4-∮18 |
331 |
411 |
40 |
36*36 |
105 |
428 |
|
585.00 |
20-M27 | ||||||||||
|
DN500 |
620.00 |
210 |
165 |
20-M24 |
4-∮22 |
379 |
468 |
50 |
46*46 |
130 |
474 |
|
650.00 |
20-M30 | ||||||||||
|
DN600 |
725.00 |
210 |
165 |
20-M27 |
4-∮22 |
463 |
562 |
50 |
46*46 |
152 |
573 |
|
770.00 |
20-M33 |
