Model：
|
NO |
Product Properties |
| |
|
1 |
Rated working pressure |
PN |
1.0-1.6Mpa |
|
2 |
Test pressure |
|
1.5-2.4Mpa |
|
Seal |
1.1-1.76Mpa | ||
|
3 |
Operating temperature |
T |
0-100℃ |
|
4 |
Applicable medium |
| |
|
NO |
name |
material quality |
NO |
name |
material quality |
|
1 |
Executor |
Aluminium alloy shell |
8 |
Upper shaft |
304、316、416stainless steel, 45 # carbon steel |
|
2 |
Connection Bolt |
45#、stainless steel |
9 |
Seat back |
phenolic resin |
|
3 |
O-ring seal |
NBR |
10 |
Valve |
QT450 nickel plating, QT450 nylon, aluminum bronze, 304, 316, 316L, 2507, 1.4469, 1.4529 |
|
4 |
Retreat spring |
50#Manganese steel |
11 |
Retreat |
UPVC、45# |
|
5 |
Retreat Ring |
45#Zinc plating |
12 |
Lower shaft |
304, 316, 416 stainless steel, 45 # carbon steel |
|
6 |
Round gasket |
45#镀锌 |
13 |
Seat rubber |
EPDM, NBR, FTFE, silicone, fluoride |
|
7 |
Lubricating shaft sleeve |
聚四氟乙烯 |
14 |
valve body |
304、316、316L |
|

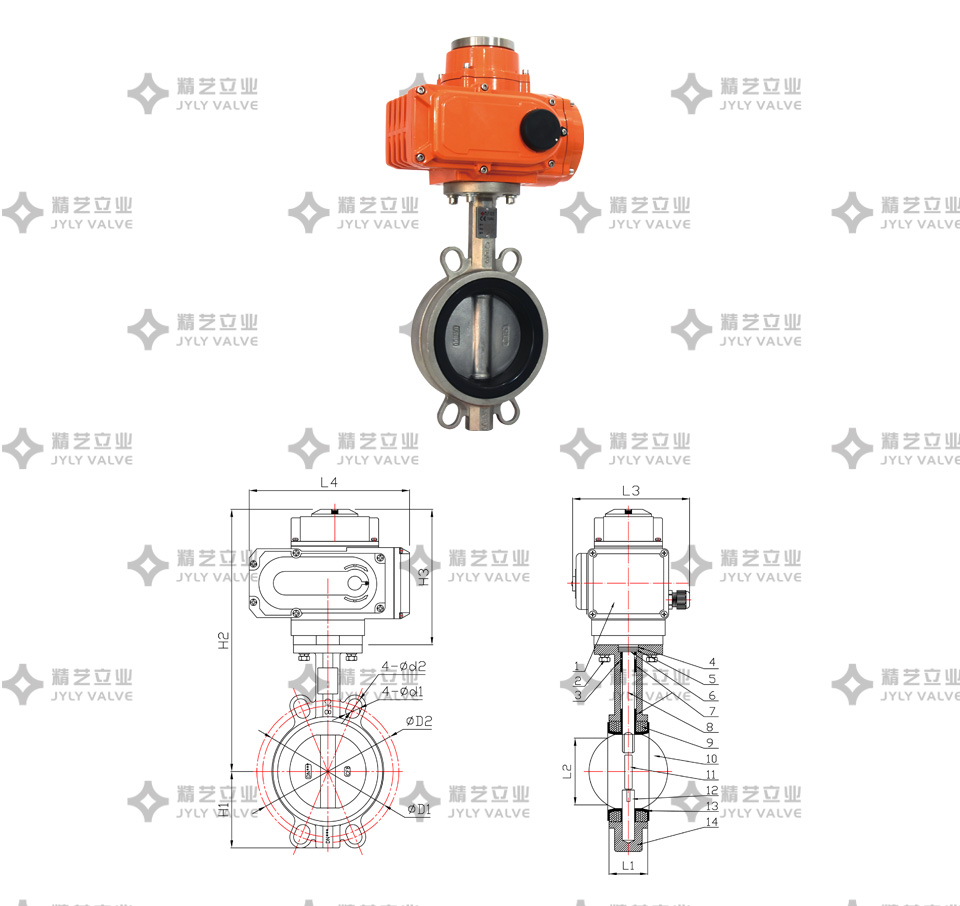

DN |
ΦD1/ΦD2 |
4-Φd1 /∮d2 |
H1 |
H2 |
H3 |
L1 |
L2 |
L3 |
L4 |
|
DN50 |
107.00 |
19.00 |
61 |
267 |
138 |
42 |
32 |
124.5 |
156 |
|
125.00 |
19.00 | ||||||||
|
DN65 |
119.00 |
19.00 |
82 |
284 |
138 |
45 |
47 |
124.5 |
156 |
|
145.00 |
19.00 | ||||||||
|
DN80 |
154.50 |
23.00 |
94 |
296 |
138 |
45 |
65 |
124.5 |
156 |
|
155.75 |
24.00 | ||||||||
|
DN100 |
175.00 |
19.00 |
105 |
325 |
151 |
52.1 |
91 |
141 |
208 |
|
190.50 |
19.00 | ||||||||
|
DN125 |
210.00 |
23.00 |
123 |
344 |
151 |
55 |
112 |
141 |
208 |
|
216.00 |
23.00 | ||||||||
|
DN150 |
240.25 |
23.50 |
137 |
403 |
189 |
56 |
146 |
179 |
256 |
|
240.25 |
23.50 | ||||||||
|
DN200 |
292.00 |
24.60 |
164 |
432 |
189 |
61 |
194 |
179 |
256 |
|
296.00 |
25.00 | ||||||||
|
DN250 |
357.00 |
30.00 |
195 |
471 |
189 |
66 |
242 |
179 |
256 |
|
357.00 |
30.00 | ||||||||
|
DN300 |
400.00 |
25.00 |
232 |
519 |
209 |
77 |
292 |
190 |
280 |
|
432.00 |
26.00 | ||||||||
|
DN350 |
460.00 |
23.00 |
264 |
574 |
209 |
77 |
325 |
190 |
280 |
|
470.00 |
26.00 |
