815F flange butterfly valve-Butterfly valve

815F flange butterfly valve

Model：

序号	名称	材质	序号	名称	材质
1	valve body	WCB,CF8,CF8M,CF3M	11	Retaining ring	316
2	Valve plate	CF8,CF8M,CF3M	12	Upper shaft sleeve	316+RPTFE
3	Inserts	20#,304,316,316L	13	Lower shaft sleeve	316+RPTFE
4	seal ring	PTFE,RPTFE,PPL	14	Inlay spring	INCONEL X-750
5	Packing gland	CF8	15	Stud bolt	GB3098.1 8.8CLASS GB3098.1 A2-70CLASS
6	Pressure ring	316	16	Hexagon nut	GB3098.1 8.8CLASS GB3098.1 A2-70CLASS
7	Stem	17-4PH	17	Spring washer	WCB,316
8	Wedge pin	17-4PH	18	Nameplate	316
9	Packing group	PTFE,RPTFE,PPL	19	Name plate rivet	316
10	Packing pad	316

150LB

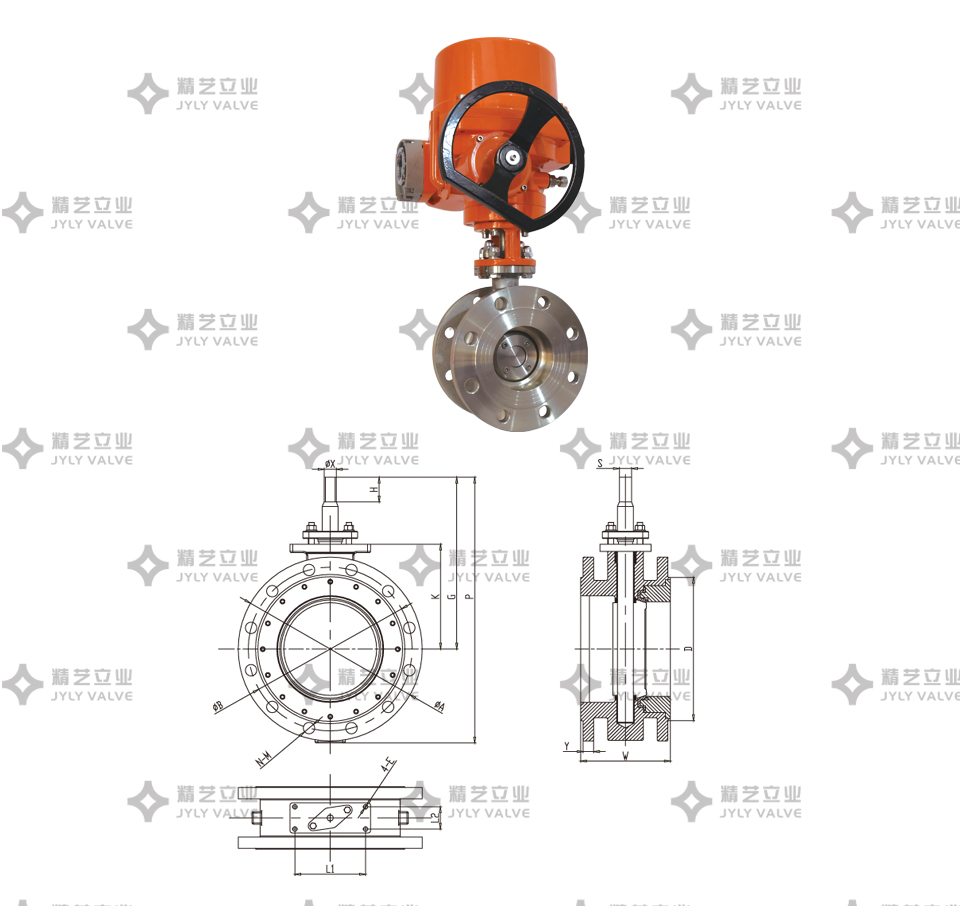

NPS	DN	K	G	P	W	A	B	D	Y	L1	L2	E	N	M	H	X	S
3"	80	121	213	303	114	190	152.4	133	23	125.5	22.35	M10	4	φ19	27	φ15.5	11.2
4"	100	133	226	331	127	230	190.5	162	20	125.5	22.35	M10	8	φ19	27	φ15.5	11.2
5"	125	135	228	355	140	255	215.9	186	22	125.5	22.35	M10	8	φ22	27	φ15.5	11.2
6"	150	152	257	417	140	280	241.3	216	23	125.5	22.35	M10	8	φ22	27	φ18.8	13.9
8"	200	187	295	485	152	345	298.5	270	23	125.5	22.35	M10	8	φ22	27	φ21.9	15.9
10"	250	232	347	569	165	405	362	324	27	142.75	37.34	M12	12	φ26	28	φ28.2	20.6
12"	300	260	380	650	178	485	431.8	381	28	142.75	37.34	M12	12	φ26	33	φ34.7	23.7
14"	350	309	443	745	190	535	476.3	427	33	142.75	37.34	M12	12	φ29	35	φ34.93	28.7
16"	400	331	438.5	773.5	216	595	539.8	485	35	203.2	82.55	M16	16	φ29	41	φ46	41.4
18"	450	356	517	884	222	635	577.9	533	37	203.2	82.55	M16	16	φ32	41	φ47	41.4
20"	500	377	540	959	229	700	635	584	39	203.2	82.55	M16	20	φ32	41	φ54.1	41.4
24"	600	490	615	1046	267	815	749.3	692	41	254	82.55	M20	20	φ35	50.8	φ70	50.8
300LB
NPS	DN	K	G	P	W	A	B	D	Y	L1	L2	E	N	M	H	X	S
3"	80	121	213	303	114	190	152.4	133	23	125.5	22.35	M10	4	φ19	27	φ15.5	11.2
4"	100	133	226	331	127	230	190.5	162	20	125.5	22.35	M10	8	φ19	27	φ15.5	11.2
5"	125	135	228	355	140	255	215.9	186	22	125.5	22.35	M10	8	φ22	27	φ15.5	11.2
6"	150	175	257	417	140	300	269.9	216	30	125.5	22.35	M10	12	φ22	27	φ21.9	15.9
8"	200	213	295	485	152	375	330.2	270	33	142.75	37.34	M12	12	φ26	28	φ28.2	20.6
10"	250	254	347	569	165	450	387.4	324	38	142.75	37.34	M12	16	φ29	33	φ34.7	23.7
12"	300	283	380	650	178	515	450.8	381	40	142.75	37.34	M12	16	φ32	35	φ34.93	28.7
14"	350	355	443	745	190	580	514.4	427	42	142.75	37.34	M12	20	φ32	41	φ46	41.4
16"	400	350.5	438.5	773.5	216	660	571.5	485	44	203.2	82.55	M14	20	φ35	41	φ47	41.4
18"	450	424	517	884	222	685	628.6	533	46	254	82.55	M16	24	φ35	41	φ54.1	41.4
20"	500	447	540	959	229	755	685.8	584	48	254	82.55	M20	24	φ35	50.8	φ70	50.8
24"	600	501	615	1046	267	890	812.8	692	50	254	82.55	M20	24	φ42	50.8	φ83	51
